Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins

Wuhan Chidian Technology Co., Ltd
Contact Now

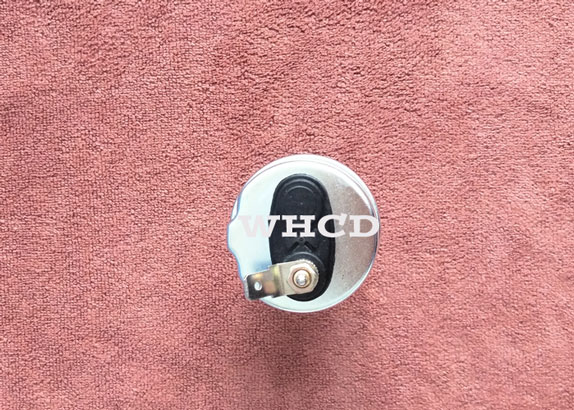

Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins

  • 1
  • 2

Brand Name : WHCD

Model Number : CDYG313010201

Certification : RoHS

Place of Origin : Hubei, China

MOQ : 25 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 20,000 pcs/month

Delivery Time : 3-5 working days

Packaging Details : PE bag, Standard Carton; It also can be customized according to your requirements

Material : Steel

Color : White Zinc Plated

Function : Oil Pressure Measurement

Protection : IP66

Thread Fitting : NPT 1/8

Resistance Value : 10 ~ 184 Ω

Alarm Value : NIL

Measuring Range : 0 ~ 10 Bar

Output : Single Wire

Application : Commins B/C, Chaochai6102, Xichai6100/6108/6112, Yuchai6110/6102/6108, Shangchai6114D, Dachai6112 ...

Contact Now

Thread Fitting NPT 1/8 Oil Pressure Gauge Sender Sensor For Cummins

Product Description

Oil pressure sensor  is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project etc.

Technical Data


  • Operating voltage: 6~24V
  • Conducting power: < 5W
  • Operating temperature: -40 ~120℃ (120℃ MAX 1H)
  • Measuring range: 0~10 Bar
  • Alarm: Nil
  • Output signal: 10~184Ω
  • Thread fitting: NPT1/4, NPT1/8, M10, M10x1 or customized as requires.
  • Protection rank: IP66


Feature

Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeat-ability / Hysteresis
Special design for customer
Many OEM options

Function

Oil pressure sensor is installed in the down side of the throttle door spindle, it will change the open size of throttle door into electrical signal then pass it to the controlled computer ECU, and the computer ECU judge the engine work situation according to this signal, to control the oil injection according to different work situation for the requirement of mixture concentration.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal



Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins

                                           Basic Function Test



Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins

                                                           Life Test



Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins

                                            Sinusoidal Vibration Test



Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins

                                                 Vibration Test Parameters

Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins

                                                    Temperature Cycling Parameters

Delivery

Normally it’s 3-5 working days after payment cleared.

Payment

30% down-payment for production,the balance payment before shipment.

Packing

A: Product packed in foam box with bubble bag.
B: According to client’s requirement.

Shipment

DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.

FAQ

Q1. What is your terms of packing?
A: As usual, neutral packing with white & brown boxes. Or packing products with customers' brand boxes, if customers have legally registers patent and provide authorization letters.

Q2. What is your terms of payment?
A: Sample order: 100% payment in advance, large order: T/T 30% as deposit, and 70% before delivery. We can take pictures of products and packing for you before delivery.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.


Q4. How about your delivery time?
A: As usual, Delivery time: 7 work days after receiving payment. The specific delivery time depends on the items and product quantity.


Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.


Q6. What is your sample policy?
A: If we have the product in stock, then we can supply the sample, Please note sample and freight are not for free.


Q7. Do you test all your goods before delivery?
A: Yes, 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: 1. Good quality and competitive price to ensure our customers benefit ;
2. Respecting every customer as our friend;

3. Best service, Honest service !


Thread Fitting NPT1/8 Aftermarket Oil Pressure Sending Unit Sender For Cummins
